Vulcan ™ CNC

The Vulcan series machining centers are professional numerical control machines designed exclusively for the customized and series production of computerized orthotic insoles.

about

Technical specifications

  • 3-axis cutter models VX1 and VX1R, dimensions 82x91x104 cmz

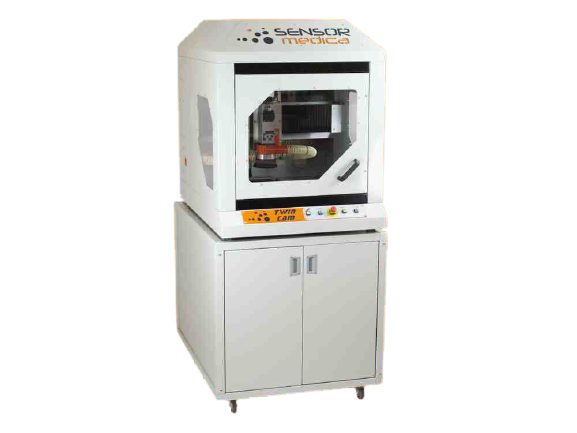

  • 4-axis cutter with independent double Z model TWINCAM 82x111x107 cm
  • Work area: 300X400x80 mm
  • 220V single-phase power supply
  • Ethernet connection

Features

  • Brushless motors with machining accuracy up to 0.05 mm
  • Machining speed up to 250 mm / sec with acceleration up to 2800 mm / sec2
  • Asynchronous motor spindle 24000 rpm,
  • controlled aspirator, for the aspiration of dust and processing residues
  • Vacuum pump for sealing blocks without double-sided adhesive
  • pair milling cutter on plates, modules and shaped blanks of different formats
  • Milling of polyurethane molds for manual thermoforming of insoles
